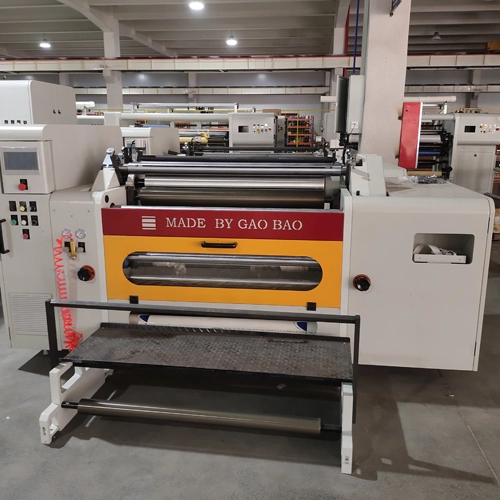

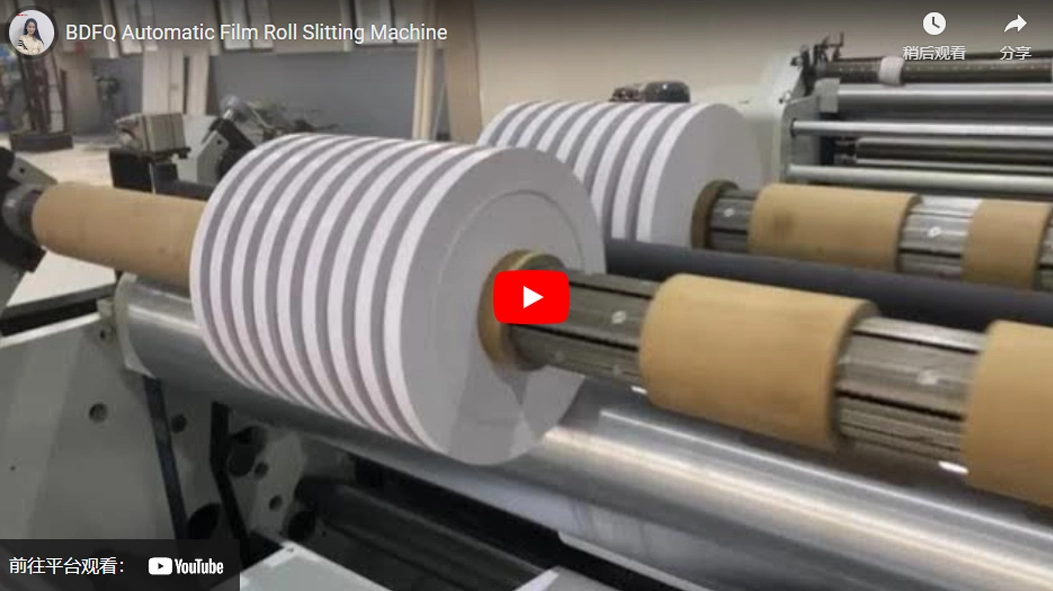

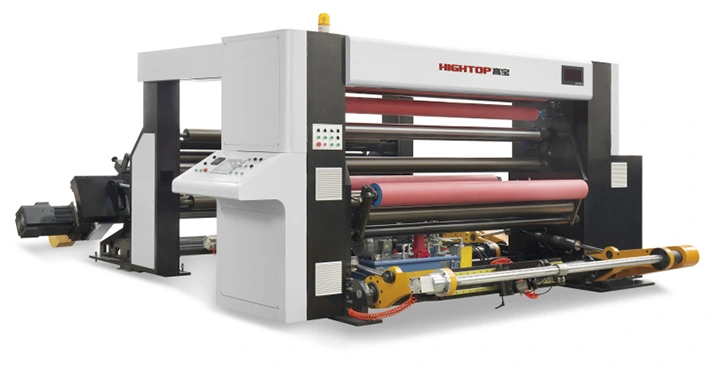

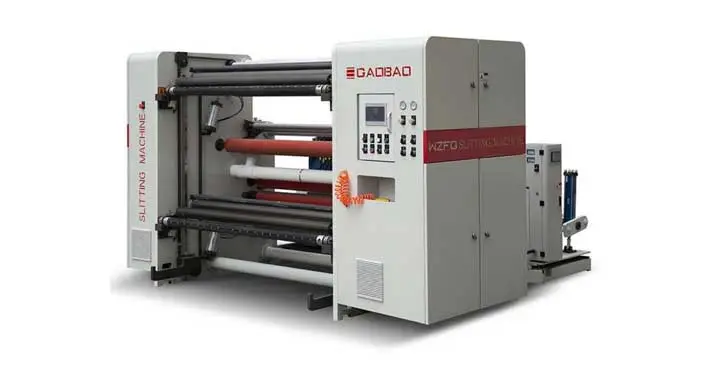

The Gaobao BDFQ-D model Film roll to various width rolls slitter rewinder machine is a center and surface rewinding type slitter machine. This type of automatic slitting machine can slit and rewind a minimum of 5mm width film rolls. The plastic film roll cutting machine is mainly used to slit the film rolls to narrow width rolls and is widely used in the film products industry. If you want to know more about plastic roll cutting machines, surface slitting machines, PVC slitting machines' prices and costs, Please do not hesitate to contact the Gaobao plastic film slitting machine manufacturer.
Automatic Operation: The automatic slitting rewinding machine is fully automatic, reducing the need for manual intervention and increasing productivity.
Durability: The BDFQ Automatic Film Roll Slitting Rewinding Machine is built to last, with a robust construction that can withstand heavy use.
Efficiency: This machine is designed to minimize waste, ensuring that every piece of film is used efficiently.
Adjustable: The automatic slitting machine allows for adjustments in the cutting width, allowing for customization based on the specific requirements of each project.
Safety: The plastic film roll cutting machine is designed with safety features to protect the operator, including emergency stop buttons and safety guards.
Model | BDFQ-1100D |
Max. Width of unwinding | 1100mm |
Max. diameter of unwinding | 1400mm |
Min. Width of slitting | 5mm |
Max. Diameter of rewinding | 600mm |
Speed of slitting | ≤350m/min |
Total Power | 6.5kw |
Power supply | 380V/50hz |
Overall dimension | 3500*1500*1500(mm) |
Weight | 3300kg |
Model | BDFQ-1300D |
Max. Width of unwinding | 1300mm |
Max. diameter of unwinding | 1400mm |
Min. Width of slitting | 5mm |
Max. Diameter of rewinding | 600mm |
Speed of slitting | ≤350m/min |
Total Power | 8.5kw |
Power supply | 380V/50hz |
Overall dimension | 3500*1800*1500(mm) |
Weight | 3600kg |
Model | BDFQ-1600D |
Max. Width of unwinding | 1600mm |
Max. diameter of unwinding | 1400mm |
Min. Width of slitting | 8mm |
Max. Diameter of rewinding | 600mm |
Speed of slitting | ≤350m/min |
Total Power | 10.5kw |
Power supply | 380V/50hz |
Overall dimension | 3500*2100*1500(mm) |
Weight | 3800kg |
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
