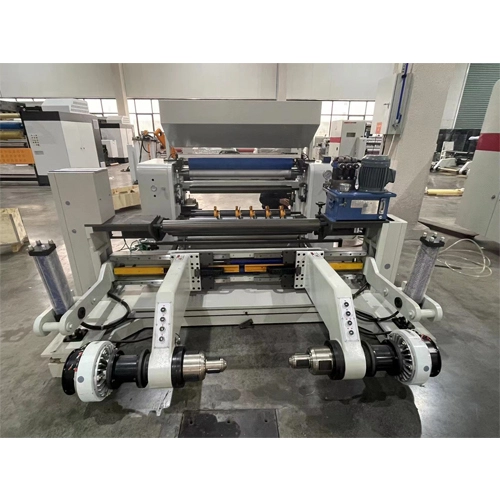

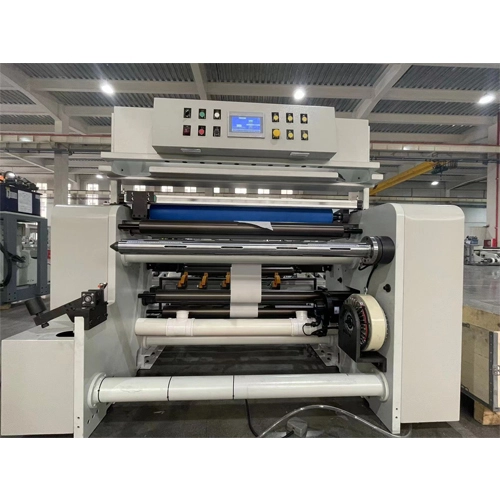

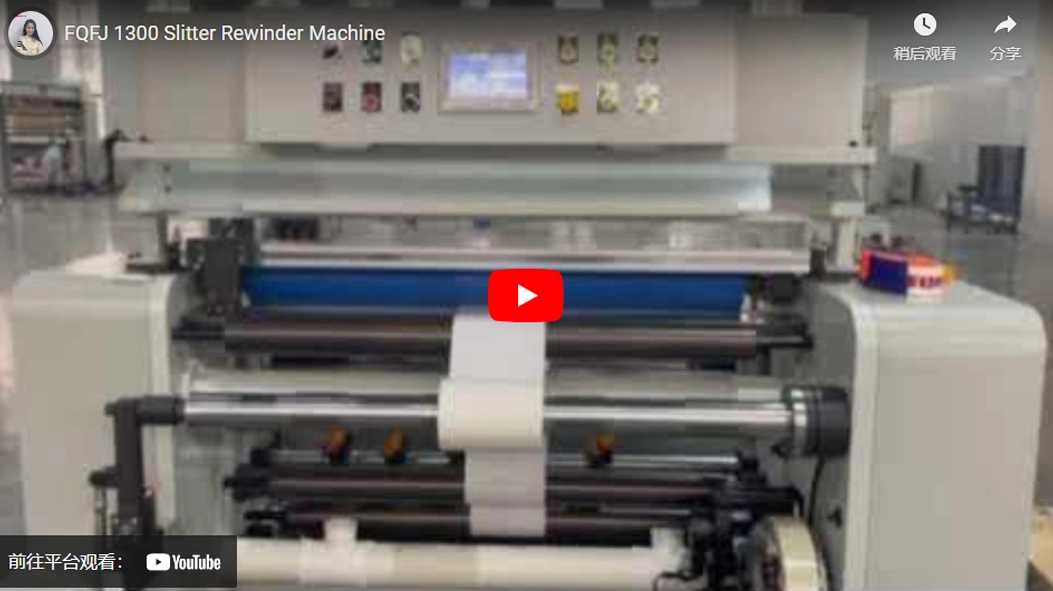

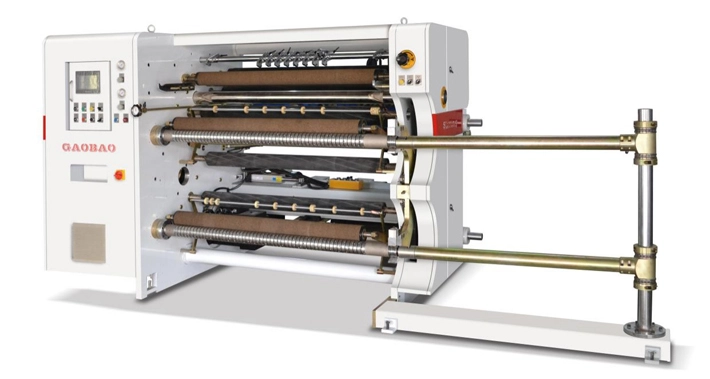

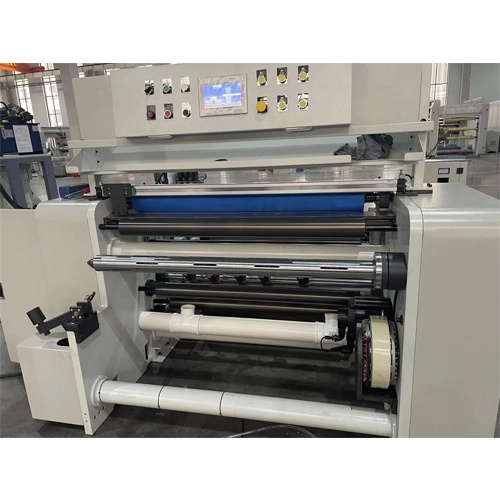

Gaobao FQFJ paper rewinder machine is suitable for slitting and rewinding various super large rolls, such as 20g/m -400g/m kraft white cardboard, laminated paper, silicone paper, aluminum foil, tin foil, PVC film, non-woven materials, and other rolls material. Please do not hesitate to contact the Gaobao paper slitting machine supplier for more information on the paper rewinder machine's price and cost.

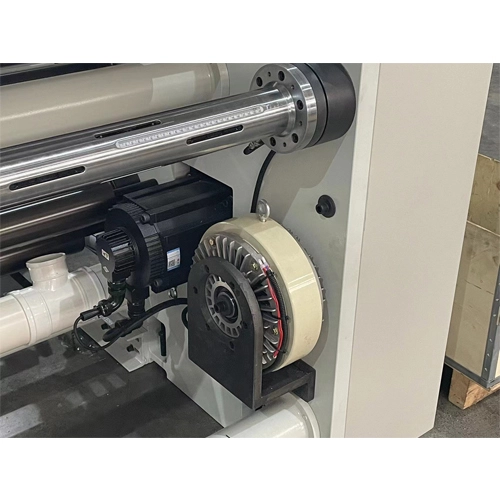

1. The paper rewinder machine adopts three servo motor control, automatic taper tension, and center rewinding method.
2. The main paper rewinder machine adopts variable frequency speed regulation to maintain balanced operation during acceleration.
3. Automatic meter counting, alarm and other functions.
4. The winding adopts single air-expanding shaft structure and chain.
5. Automatic unloading and easy operation.

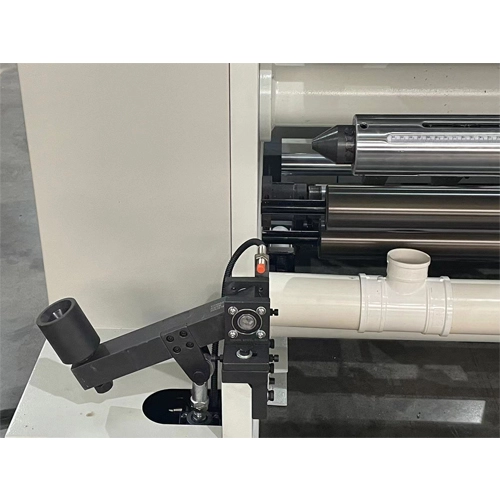

6. The unwinding adopts ultrasonic/CCD deviation correction system, so that irregular materials can be cut normally.

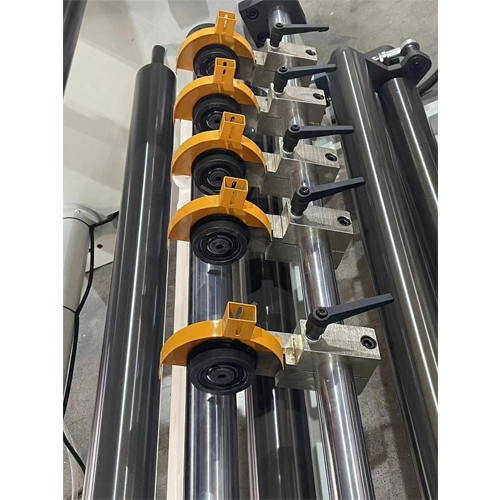

7. The paper rewinder machine adopts the circular knife/razor blade longitudinal cutting method, and the high-pressure fan waste edge automatic removal device.
8. Air-expanded shaft automatic loading method/hydraulic shaftless automatic unwinding device.
Technical parameter | |
Max width mother roll | 1300mm |
Min width finished roll | 50mm |
Max diameter mother roll | 1600mm |
Max diameter finished roll | 1600mm |
Max mother roll weight | 1500KG |
Speed of slitting | ≤300m/min |
Slitting capability | 40-550gsm |
Rewinding way | Central |
Precision | ±0.2mm |
Speed regulation control | Inverter |
Power input | 380V,50HZ,3PH |
Dimension | 4150*2200*1500 |
Total weight | 6200KG |
FQFJ machine is suitable for This machine is suitable for slitting and rewinding various super large rolls, such as 20g/m -400g/m kraft white cardboard, laminated paper, silicone paper, aluminum foil, tin foil, PVC film, non-woven materials and other rolls material.
