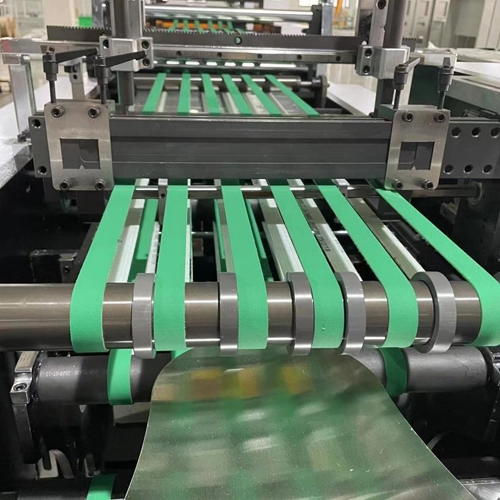

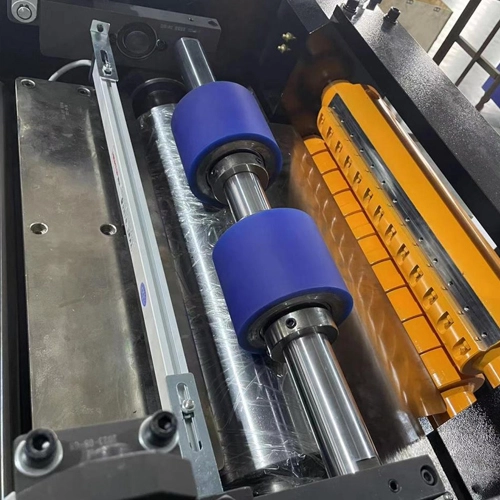

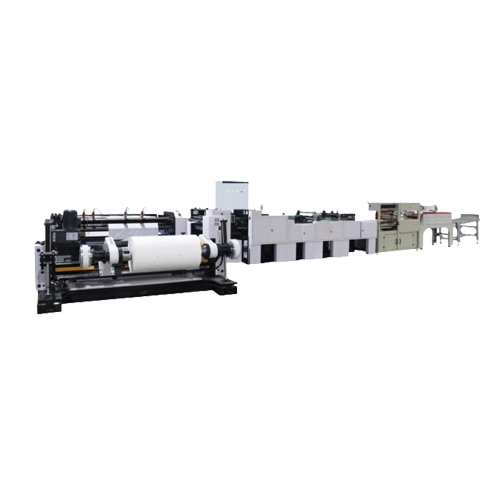

1. Motion controller and touch screen control.Servo motor controls fixed-length cutting. Dual rotary knife cutting.Collecting table and conveyor controlled by servo motors.
2. Centralized control such as pneumatic and photoelectric sensors, easy operation, high cutting
accuracy, mechanical stability, and low noise.

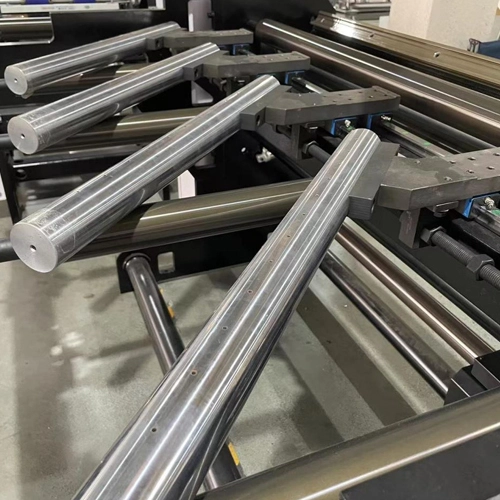

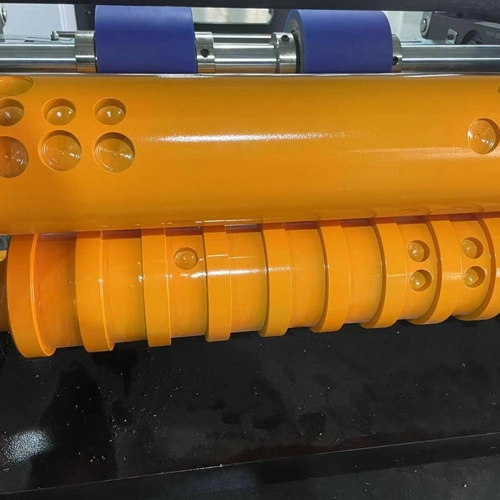

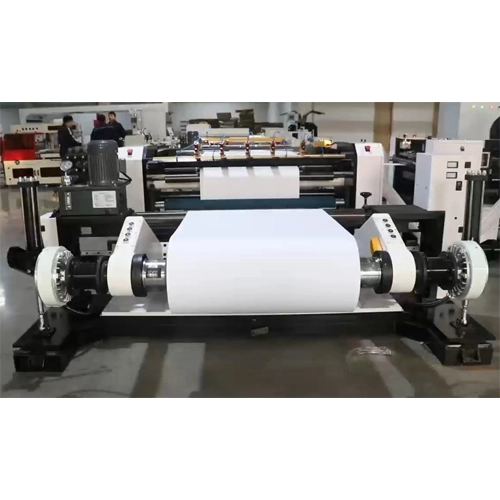

3. Shaftless clamping and air-expanding shaft structure for roll loading and unloading.
4. Motor frequency conversion speed regulation, automatic counting, alarm stop, automatic magnetic powder tension control.

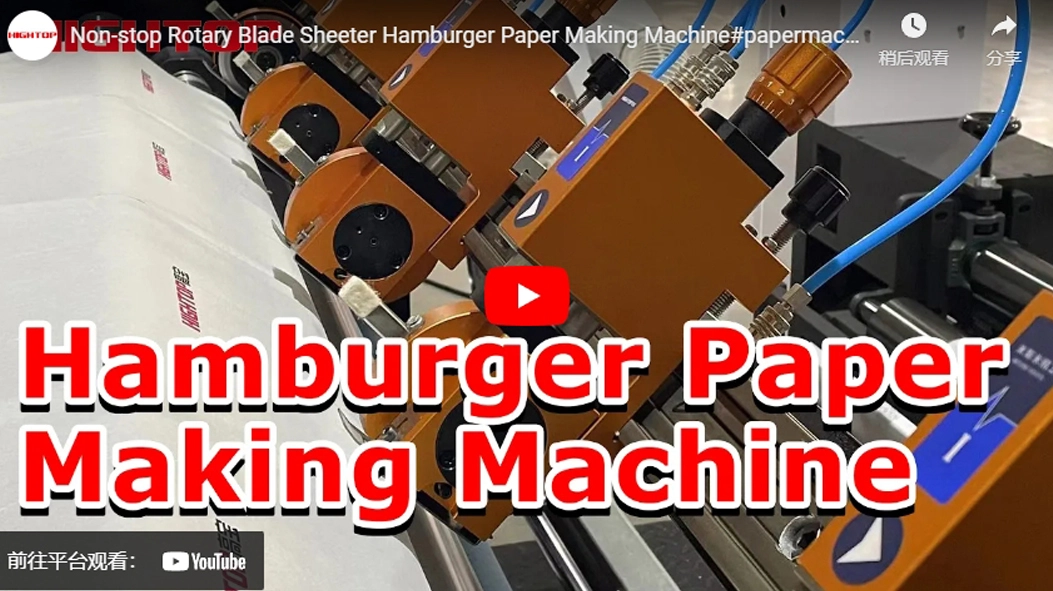

5. Pneumatic knife slitting, turn bars, different size setting.
| No. | Name | Specification |
| 1 | Equipment model | GDHQ series |
| 2 | Material grammage | 20-120gsm(adjustable according to different materials) |
| 3 | Maximum unwinding width | 1400mm |
| 4 | Maximum unwinding diameter | Φ1400mm |
| 5 | Running speed | 30-500cuts/min. |
| 6 | Cutting method | Dual rotary blade |
| 7 | Cutting length | 150-450mm |
| 8 | Cutting accuracy | 士0.2mm |
| 9 | Speed control | Servo motor |
| 10 | Power | 30KW |
| 11 | Power supply | 380V/50HZ, 3 phases, 4 wires (GDHQ-1400) |
| 12 | Dimension(L*W*H) | 12500mm*3800mm*1700mm (GDHQ-1400) |
This machine is suitable for cutting various office paper, hamburger paper, high-gloss
photo paper, and paper-plastic composite roll packaging materials.
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
