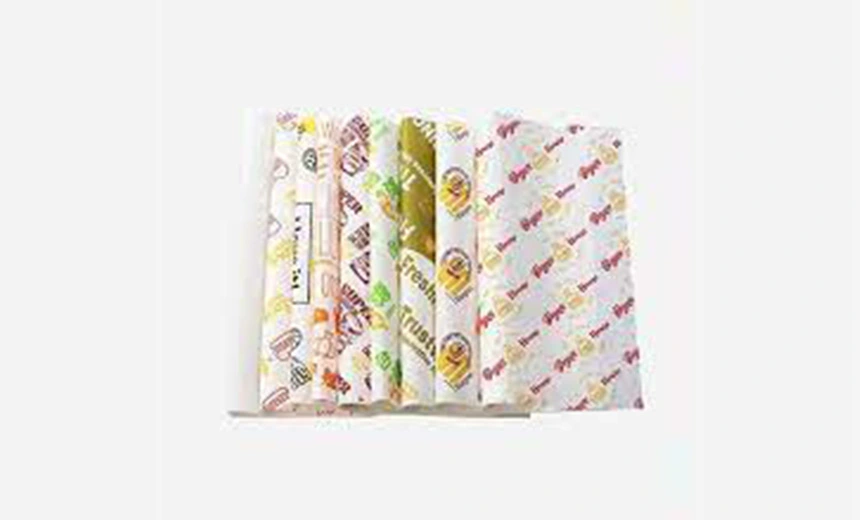

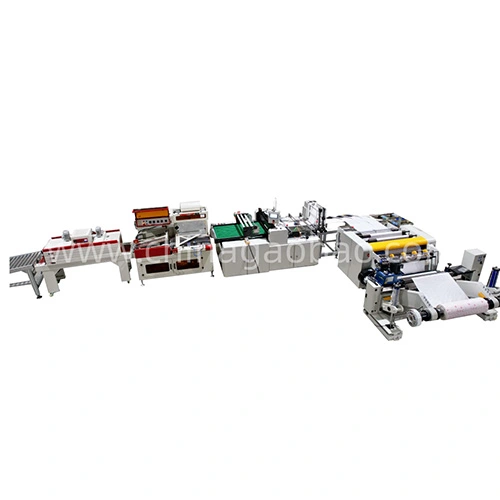

This machine is suitable for cutting large roll of 20-50g hamburger paper. It is the ideal equipment for cutting large roll of high quality in China.
This machine adopts servo motor fixed length cutting. Electronic and pneumatic double control, easy operation, high cutting precision, low noise, stable operation. The servo motor uses frequency converter to speed of the machine to keep it running stably. Automatic counting, emergency alarm, shutdown and other intelligent functions. Automatic tension adjustment, deviation correction system, using the fan waste edge automatic discharge.

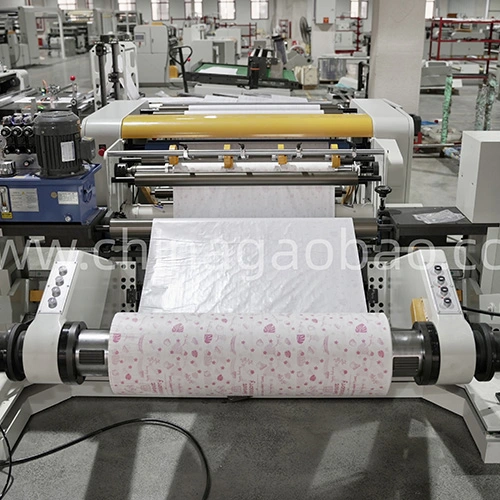

With the air shaft unwinding shaft, easily operate and flexible to adapt to various paper tube cores of different sizes.
Servo motor fixed length high precision cutting, precision up to 0.2mm.
This machine adopts Gaobao custom motion controller, touch screen adopts Fanyi brand.
Model | HQJ-1100BG |
Max.Width of unwinding roll | 1100 mm |
Max. Diameter of unwinding roll | 1200 mm |
speed | <150 times/min |
Precision | ±0.2 mm |
Total Power | 13kw |
Dimension(L*W*H) | 5400x4800x1400 mm |
Model | HQJ-1400BG |
Max.Width of unwinding roll | 1400 mm |
Max. Diameter of unwinding roll | 1200 mm |
speed | <150 times/min |
Precision | ±0.2 mm |
Total Power | 13kw |
Dimension(L*W*H) | 5400x5100x1400 mm |
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
