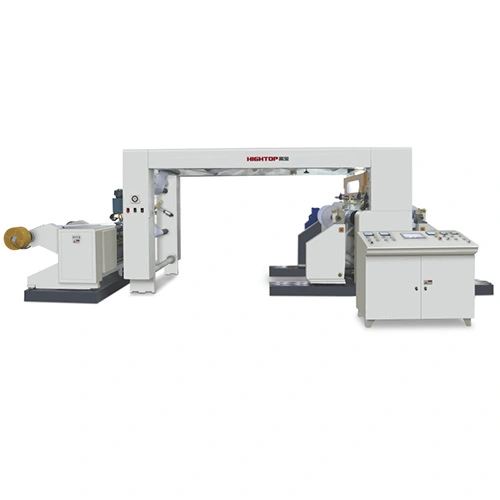

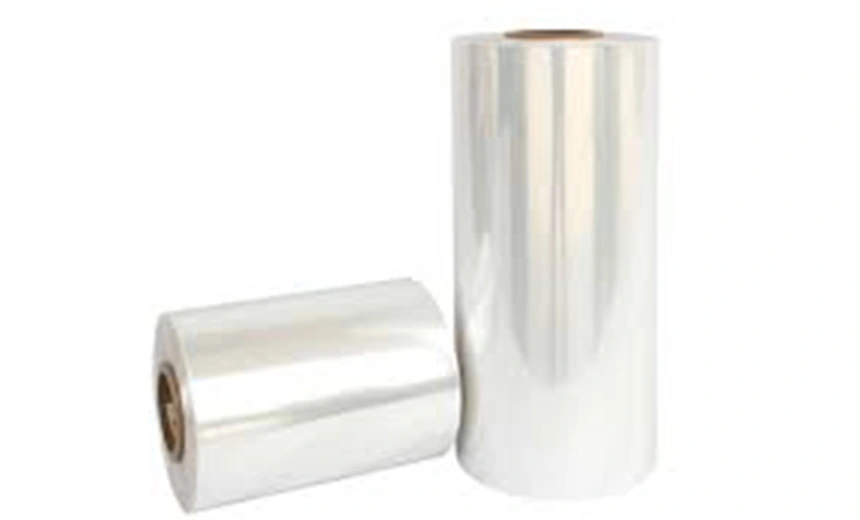

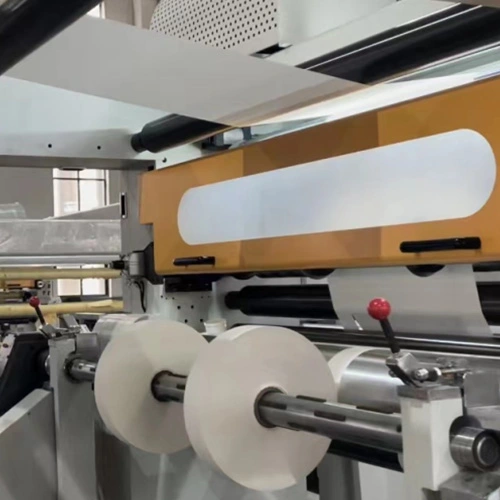

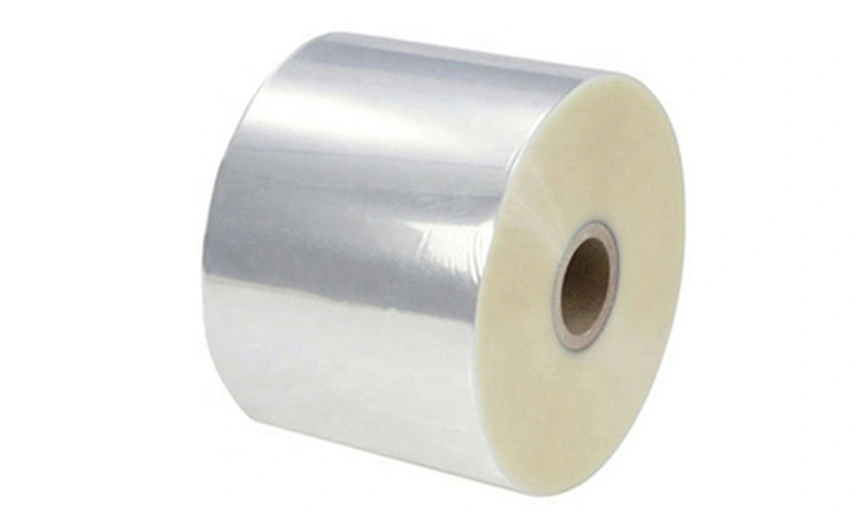

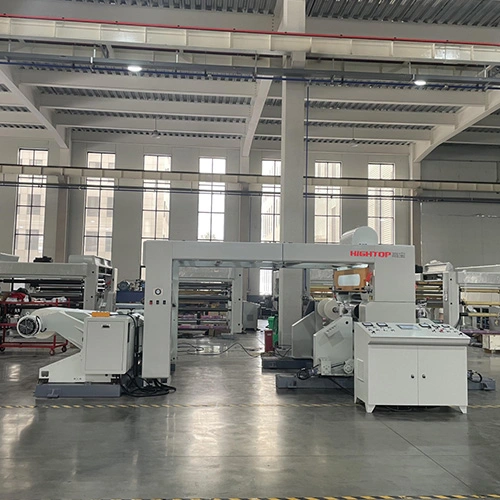

The KFQ model paper jumbo rolls to rolls slitting rewinding machine is a center&surface rewinding type slitter machine. It is mainly used to slit the jumbo paper rolls to small width rolls. It is widely using in paper, aluminum foil, nonwoven, plastic film, self - adhesive labels products manufacturing industry.
Germany brand PLC with intelligent control system.Big size operating touch screen. Control&Operating Table.
Three sets servo motors stable drive machine in a high speed level.
Full automatic tension control system.
The frame type mechanical structure let the machine running more stable.
High precision web edge position adjustment system(EPC).
Automatic loading and unloading paper rolls,saving time and labor.

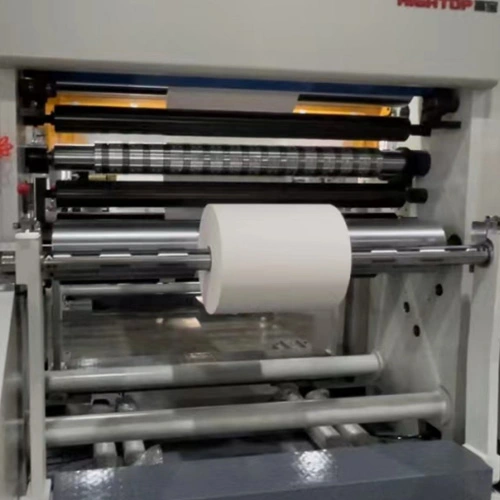

The rewinding paper rolls surface is smooth and flat.
Automatic counting rewinding meters.
Model | KFQ-1300 |
Max. Width of unwinding | 1300mm |
Max. diameter of unwinding | 1700mm |
Min. Width of slitting | 40mm |
Max. Diameter of rewinding | 1300mm |
Speed of slitting | ≤400m/min |
Total Power | 56kw |
Power supply | 380V/50hz |
Overall dimension | 8500*3500*2700(mm) |
Weight | 13000kg |
Model | KFQ-1600 |
Max. Width of unwinding | 1600mm |
Max. diameter of unwinding | 1700mm |
Min. Width of slitting | 40mm |
Max. Diameter of rewinding | 1300mm |
Speed of slitting | ≤400m/min |
Total Power | 56kw |
Power supply | 380V/50hz |
Overall dimension | 8500*3800*2700(mm) |
Weight | 14000kg |
Model | KFQ-1800 |
Max. Width of unwinding | 1800mm |
Max. diameter of unwinding | 1700mm |
Min. Width of slitting | 40mm |
Max. Diameter of rewinding | 1300mm |
Speed of slitting | ≤400m/min |
Total Power | 56kw |
Power supply | 380V/50hz |
Overall dimension | 8500*4100*2700(mm) |
Weight | 15000kg |
Model | KFQ-2000 |
Max. Width of unwinding | 2000mm |
Max. diameter of unwinding | 1700mm |
Min. Width of slitting | 40mm |
Max. Diameter of rewinding | 1300mm |
Speed of slitting | ≤400m/min |
Total Power | 56kw |
Power supply | 380V/50hz |
Overall dimension | 8500*4500*2700(mm) |
Weight | 17000kg |
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
