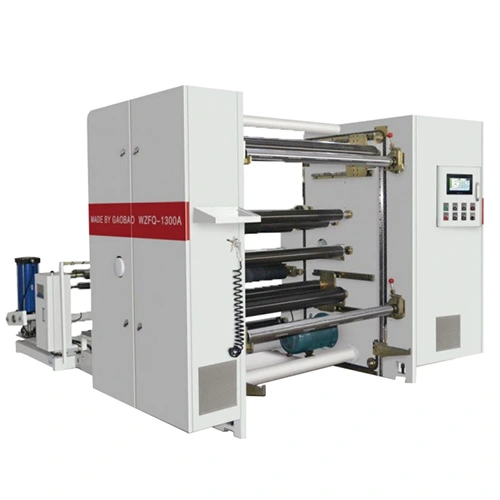

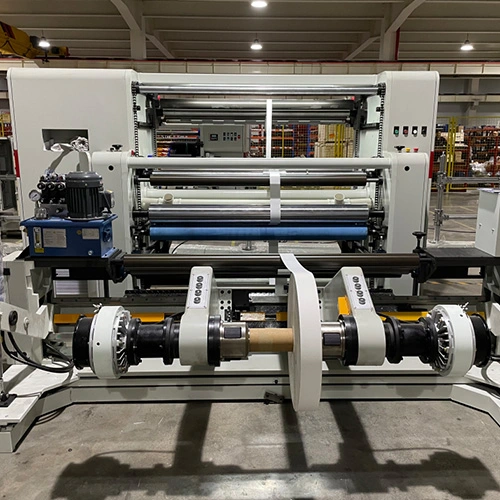

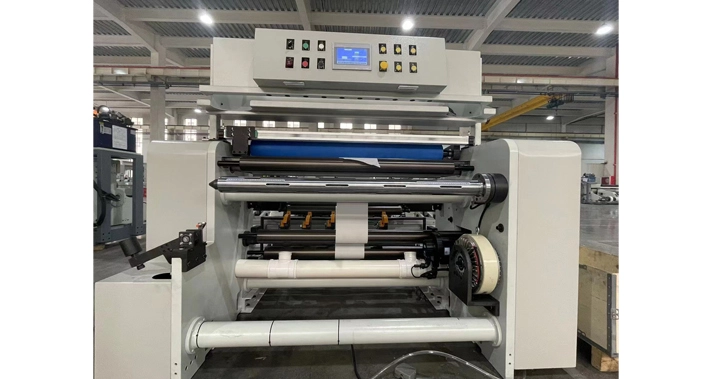

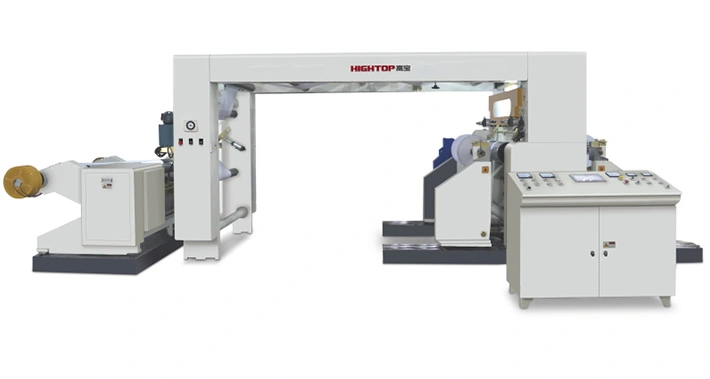

The WZFQ-A model paper jumbo rolls to narrow rolls slitting rewinding machine is a center rewinding type slitter machine. It is mainly used to slit the jumbo paper rolls to narrow rolls. It is widely used in paper bag manufacturing, paper cup manufacturing, paper tube manufacturing, and other paper product manufacturing industries.
Germany brand PLC with the intelligent control system. Big-size operating touch screen.
Three sets of servo motors stable drive the machine at a high-speed level.
Full automatic tension control system.
High-precision web edge position adjustment system(EPC).
Automatic loading and unloading of paper rolls, saving time and labor.
The rewinding paper roll's surface is smooth and flat.
Automatic counting rewinding meters.
Model | WZFQ1300 | ||
Max mechanical speed | 400m/min | ||
Material thickness | 30-500gsm | ||
Max slitting speed | 350m/min | ||
Max roll width | 1300mm | ||
Min slitting width | 30mm | ||
Max unwinding diameter | 1400mm | ||
Max rewinding diameter | 1100mm | ||
Voltage | 380V 50HZ or Customized | ||
Power | 22kw | ||
Weight | 3400kg | ||
Dimension(LxWxH)(mm) | 4500*3100*1900 | ||
Model | WZFQ1600 | ||
Max mechanical speed | 400m/min | ||
Material thickness | 30-500gsm | ||
Max slitting speed | 350m/min | ||
Max roll width | 1600mm | ||
Min slitting width | 30mm | ||
Max unwinding diameter | 1400mm | ||
Max rewinding diameter | 1100mm | ||
Voltage | 380V 50HZ or Customized | ||
Power | 26kw | ||
Weight | 3800kg | ||
Dimension(LxWxH)(mm) | 4500*3400*1900 | ||
Model | WZFQ1800 | ||
Max mechanical speed | 400m/min | ||
Material thickness | 30-500gsm | ||
Max slitting speed | 350m/min | ||
Max roll width | 1800mm | ||
Min slitting width | 30mm | ||
Max unwinding diameter | 1400mm | ||
Max rewinding diameter | 1100mm | ||
Voltage | 380V 50HZ or Customized | ||
Power | 35kw | ||
Weight | 4200kg | ||
Dimension(LxWxH)(mm) | 4500*3600*1900mm | ||
Boost your company's productivity and enhance your converting capabilities with Hightop's cutting-edge Converting Machines.
