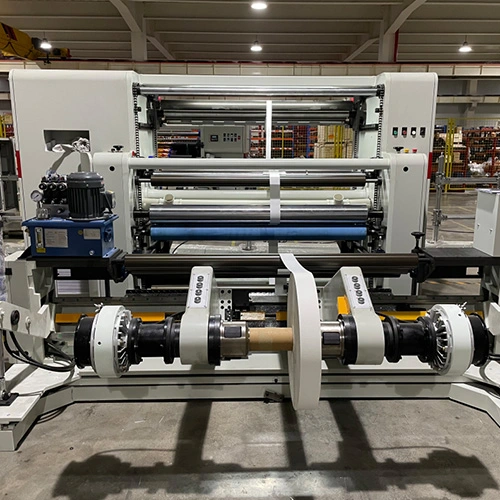

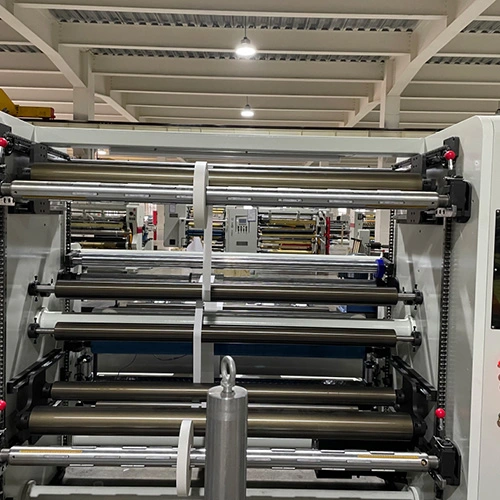

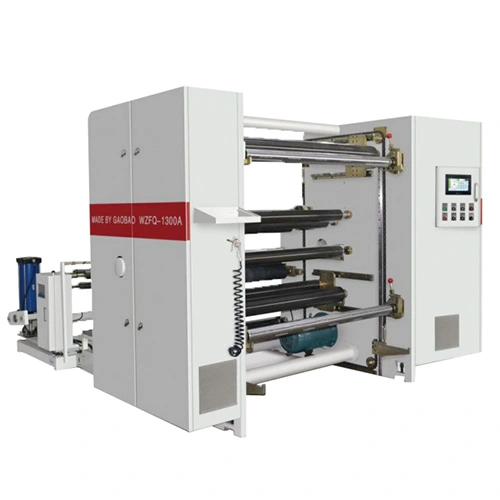

Gaobao's WZFQ-A model paper jumbo rolls to narrow rolls slitting rewinding machine is a center rewinding type slitter machine. The kraft paper slitting machine is mainly used to slit the jumbo paper rolls to narrow rolls. Kraft paper slitter rewinders are widely used in paper bag manufacturing, paper cup manufacturing, paper tube manufacturing, and other paper product manufacturing industries. If you would like more information about the paper roll slitting rewinding machine and kraft paper slitting machine price and cost, please do not hesitate to contact the Gaobao paper slitting machine supplier.
Germany brand PLC with the intelligent control system. Big-size operating touch screen.
Three sets of servo motors stable drive the kraft paper slitting machine at a high-speed level.
Full automatic tension control system.
High-precision web edge position adjustment system(EPC).
Automatic loading and unloading of paper rolls, saving time and labor.
The rewinding paper roll's surface is smooth and flat.
Automatic counting rewinding meters.
Model | WZFQ1300 | ||
Max mechanical speed | 400m/min | ||
Material thickness | 30-500gsm | ||
Max slitting speed | 350m/min | ||
Max roll width | 1300mm | ||
Min slitting width | 30mm | ||
Max unwinding diameter | 1400mm | ||
Max rewinding diameter | 1100mm | ||
Voltage | 380V 50HZ or Customized | ||
Power | 22kw | ||
Weight | 3400kg | ||
Dimension(LxWxH)(mm) | 4500*3100*1900 | ||
Model | WZFQ1600 | ||
Max mechanical speed | 400m/min | ||
Material thickness | 30-500gsm | ||
Max slitting speed | 350m/min | ||
Max roll width | 1600mm | ||
Min slitting width | 30mm | ||
Max unwinding diameter | 1400mm | ||
Max rewinding diameter | 1100mm | ||
Voltage | 380V 50HZ or Customized | ||
Power | 26kw | ||
Weight | 3800kg | ||
Dimension(LxWxH)(mm) | 4500*3400*1900 | ||
Model | WZFQ1800 | ||
Max mechanical speed | 400m/min | ||
Material thickness | 30-500gsm | ||
Max slitting speed | 350m/min | ||
Max roll width | 1800mm | ||
Min slitting width | 30mm | ||
Max unwinding diameter | 1400mm | ||
Max rewinding diameter | 1100mm | ||
Voltage | 380V 50HZ or Customized | ||
Power | 35kw | ||
Weight | 4200kg | ||
Dimension(LxWxH)(mm) | 4500*3600*1900mm | ||
The kraft paper slitting machine is suitable for cardboard paper jumbo roll to small roll.
Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.
